* Alloy steel forged parts provide maximum durability.
* Forged latch retainer for quick chisel change.
* Optional muffler available on request.
B87C
Features
* Alloy steel forged parts provide maximum durability.
* Forged latch retainer for quick chisel change.
* Optional muffler available on request.
- Overview
- Recommended Products
Product Description

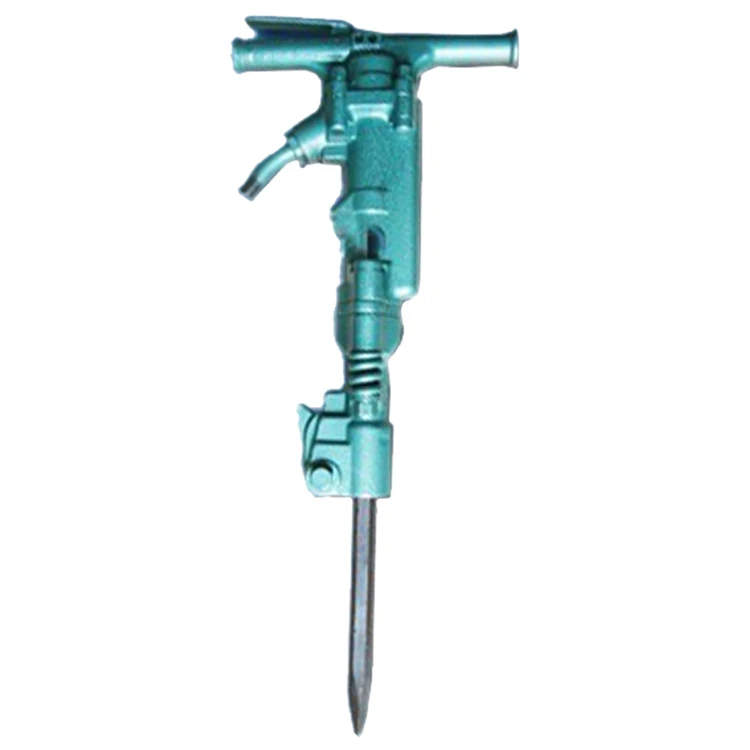

B47/67/77/87C Pneumatic Breaker Jack Hammer Paving Breaker
B47/67/77/87C is an air demolition hammer. It is made in China and designed for heavy duty user. It is ideal for concrete breaking at construction site.
Features
Specification
|
Model
|
B47C
|
B67C
|
B77C
|
B87C
|
|
Weight
|
21.5 KG
|
30 KG
|
39 KG
|
39 KG
|
|
Length
|
550 MM
|
615 MM
|
763 MM
|
686 MM
|
|
Working pressure
|
0.5 Mpa
|
0.63 Mpa
|
189 MM
|
0.63 Mpa
|
|
Impact energy
|
≥76 J
|
37±10% J
|
0.63 Mpa
|
100±10% J
|
|
Impact frequency
|
21 Hz
|
24±5% Hz
|
18.3 Hz
|
18±5% Hz
|
|
Air consumption
|
28 L/s
1.7 m³/min
|
42±15% L/s
2.52±15% m³/min
|
34 L/s
2.04 m³/min
|
55±15% L/s
3.3±15% m³/min
|
|
Air pipe inner dia
|
19 MM
|
19 MM
|
19 MM
|
19 MM
|
|
Shank size
|
25*108 MM
1*4-1/4 IN
|
32*152 MM
(1-1/4X6 IN)
28*152 MM
(1-1/8X6 IN)
|
32*152 MM
32*160 MM
|
32*152 MM
|
|
Inlet size
|
3/4pt
|
3/4pt
|
3/4pt
|
|
|
Air pressure
|
0.63Mpa
|
0.63Mpa
|
0.63Mpa
|
|
FAQ
Q1 Where is Deckwell factory located?
A1:Deckwell factory is located at Fuzhou City Fujian Province.Our factory was built in 2003 and we started to do export from 2008.
A1:Deckwell factory is located at Fuzhou City Fujian Province.Our factory was built in 2003 and we started to do export from 2008.
Q2 :What is our main application?
A2: 1.Hydraulic power unit and tools 60%
2.Pneumatic tools 40%
Q3 :What is the payments term ?
A3:1.T/T
(1)Payment<=5000USD100% in advance.
(2)Payment>=5000USD,30% T/Tin advance balance befor shippment. 2. L/C at sight.
3.Western Union
A3:1.T/T
(1)Payment<=5000USD100% in advance.
(2)Payment>=5000USD,30% T/Tin advance balance befor shippment. 2. L/C at sight.
3.Western Union
Q4 :What is the delivery time?
A4:Generally 5-15 days.It will need 30 days if the order is big amount as USD100 000.
Q5 :Can I Mark My Own brand on the machine?
A5: Yes, But you have to provide your authority of brand to us
Q6 :Can I get a sample?
A6: Yes, But the sample and the express freight cost must be paid by customer
