*Adjustable torque impact
*Good design with swing hammer mechanism
*One-hand trigger
*Forward-reverse quick switch
HIW03 HIW12 HIW16 HIW24 Hydraulic Wrenchs
Features
*Adjustable torque impact
*Good design with swing hammer mechanism
*One-hand trigger
*Forward-reverse quick switch
- Overview
- Recommended Products
Products

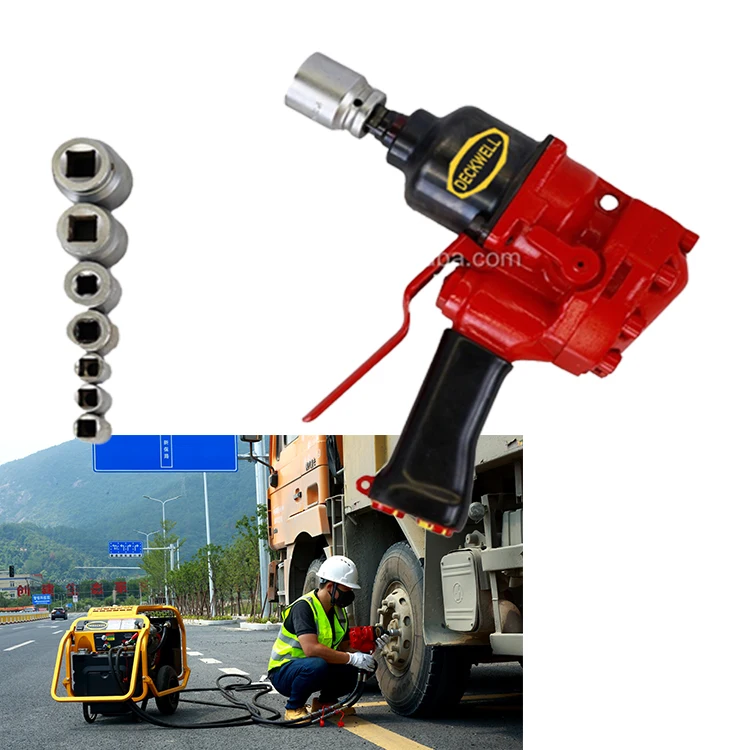

HIW03 HIW12 Hydraulic Wrench
The hydraulic impact wrench is used for tightening and loosening nuts and driving lag bolts in municipalities, gas & watering and railway maintenance.
Product Specification
|
Model
|
HIW03
|
HIW12
|
HIW16
|
HIW24
|
|
Drive
|
1/2inc(1.3cm)
|
3/4inc(1.9cm)
|
1inc(2.5cm)
|
1.5inc(3.8cm)
|
|
Output Energy
|
576Nm
|
350-1625Nm
|
675-3400Nm
|
1000-4750Nm
|
|
Hydraulic Flow Range
|
26-34 lpm
|
20-45 lpm
|
25-45lpm
|
25-45lpm
|
|
Weight
|
3.6kg
|
6.4kg
|
12kg
|
12kg
|
|
Length
|
218mm
|
241mm
|
370mm
|
370mm
|
|
Wide
|
68mm
|
100mm
|
110mm
|
110mm
|
|
Maximum pressure
|
138bar
|
138bar
|
138bar
|
138bar
|
|
Maximum back pressure
|
17bar
|
17bar
|
17bar
|
17bar
|
FAQ
Q1: Where is Deckwell factory located?
A1: Deckwell factory is located at Fuzhou city Fujian province .Our factory is build in 2003 and we start to do export from 2008.
A1: Deckwell factory is located at Fuzhou city Fujian province .Our factory is build in 2003 and we start to do export from 2008.
Q2: What is our main application?
A2: 1. Hydraulic power unit and tools 60%
2. Pneumatic tools 40%
A2: 1. Hydraulic power unit and tools 60%
2. Pneumatic tools 40%
Q3: What is the payment term?
A3: 1.T/T
(1)Payment<=5000 USD 100% in advance.
(2)Payment>=5000 USD , 30% T/T in advance.
2.L/C at sight
3.Western Union
A3: 1.T/T
(1)Payment<=5000 USD 100% in advance.
(2)Payment>=5000 USD , 30% T/T in advance.
2.L/C at sight
3.Western Union
Q4: What is the delivery time?
A4: Generally 5-15 days.It will need 30 days if the order is big amount as USD 100 000.
A4: Generally 5-15 days.It will need 30 days if the order is big amount as USD 100 000.
Q5: Can I mark my own brand on the machine?
A5: Yes,but you have to provide your authority of brand to us.
A5: Yes,but you have to provide your authority of brand to us.
Q6: Can I get a sample?
A6: Yes,but the sample and express freight cost must be paid by customer.
A6: Yes,but the sample and express freight cost must be paid by customer.
